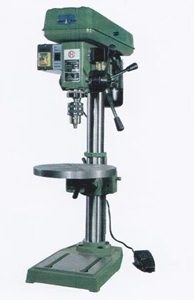

Mesin Bor Duduk Drill and Tapping ZQS4116I Westlake

Mesin Bor Duduk Drill and Tapping ZQS4116I Westlake memiliki max. Drilling capacity 16mm, max. Tapping capacity M12/M10, diameter of column 70mm, spindle travel 85mm, distance spindle axis to column surface 180mm, max. Distance spindle nose to worktable 400/432mm, max. distance spindle nose to base 560/592mm, spindle taper B18, spindle speeds range 250-2000rpm/380-2000rpm, 4 spindle speeds, dimension of base 220x220mm, overall height 956mm, motor 550/400 W, gross weight/ net weight 85/66kg, ship measurement 76x44x105cm.
